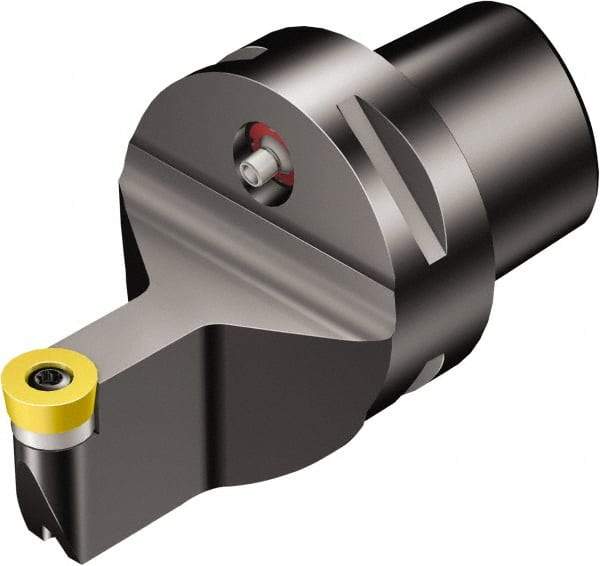

Sandvik Coromant - Neutral Cut, Size C4, RCMT 06 02 M0 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 3mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49493232
Brand: Sandvik Coromant
Model #: 5728137
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 50.00 |
| Insert Style | RCMT 06 02 M0 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 3.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Center to Cutting Height (mm) | 12.00 |
| Center to Cutting Height (Decimal Inch) | 0.4724 |
| Complete Insert Compatibility | RCMT 06 02 M0 |
| Head Connection Size | C4 |
