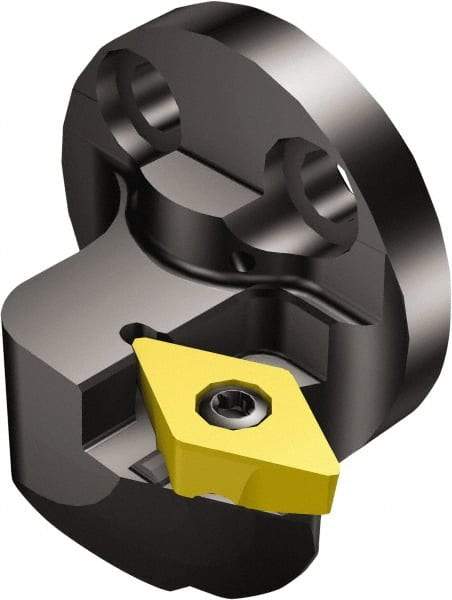

Sandvik Coromant - Left Hand Cut, Size 40, TR-DC1308 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 32mm Ctr to Cutting Edge, 25.7mm Head Length, Through Coolant, Series CoroTurn TR
Item #: 49492440
Brand: Sandvik Coromant
Model #: 6421224
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroTurn TR |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 25.70 |
| Head Length/Projection (Decimal Inch) | 1.0118 |
| Insert Style | TR-DC1308 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 32.00 |
| Center to Cutting Edge (Decimal Inch) | 1.2598 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 22.00 |
| Maximum Hole Depth (Decimal Inch) | 0.8661 |
| Minimum Hole Diameter (mm) | 54.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.1260 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | TR-DC1308 |
| Head Connection Size | 40 |
