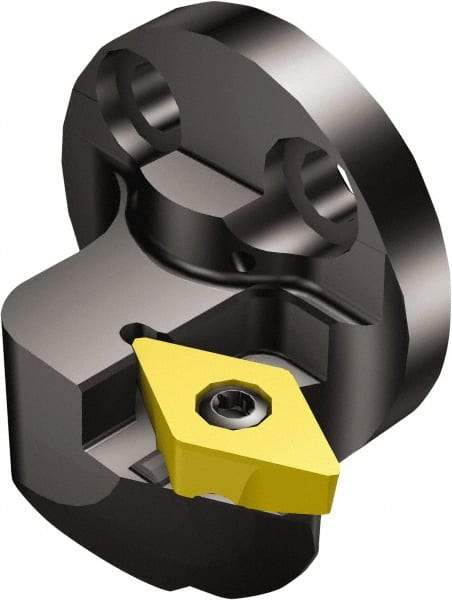

Sandvik Coromant - Right Hand Cut, Size 40, TR-DC1308 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 29mm Ctr to Cutting Edge, 29.5mm Head Length, Through Coolant, Series CoroTurn TR
Item #: 49492267
Brand: Sandvik Coromant
Model #: 5755365
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroTurn TR |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 29.50 |
| Head Length/Projection (Decimal Inch) | 1.1614 |
| Insert Style | TR-DC1308 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 29.00 |
| Center to Cutting Edge (Decimal Inch) | 1.1417 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 22.00 |
| Maximum Hole Depth (Decimal Inch) | 0.8661 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | TR-DC1308 |
| Head Connection Size | 40 |
