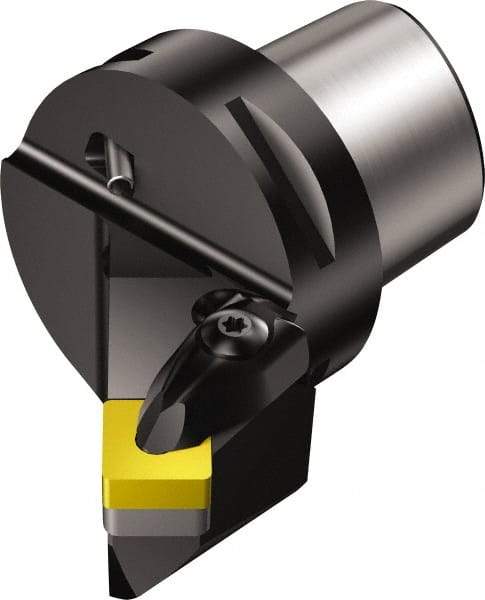

Sandvik Coromant - Left Hand Cut, Size C5, SNMG 15 06 12 & SNMG 543 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 60.24mm Head Length, Through Coolant, Series T-Max P
Item #: 49492192
Brand: Sandvik Coromant
Model #: 5728659
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 60.24 |
| Head Length/Projection (Decimal Inch) | 2.3716 |
| Insert Style | SNMG 15 06 12; SNMG 543 |
| Internal or External | External |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Minimum Hole Diameter (mm) | 125.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.9213 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Complete Insert Compatibility | SNMG 543; SNMG 15 06 12 |
| Head Connection Size | C5 |
