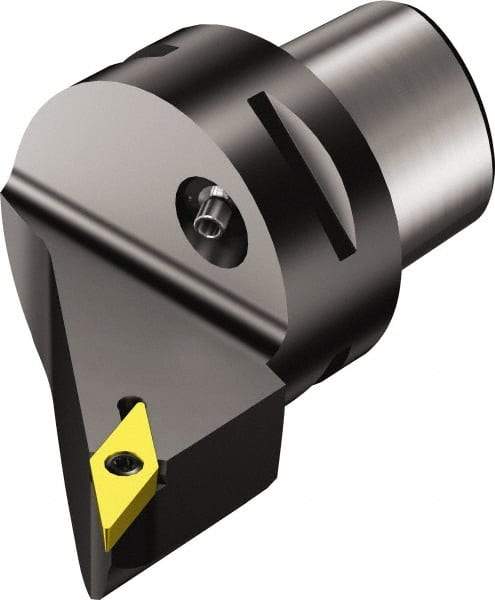

Sandvik Coromant - Left Hand Cut, Size C4, VBMT 11 02 04 & VBMT 2(1.5)1 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49492184
Brand: Sandvik Coromant
Model #: 5728320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 50.00 |
| Insert Style | VBMT 11 02 04; VBMT 2(1.5)1 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | VBMT 2(1.5)1; VBMT 11 02 04 |
| Head Connection Size | C4 |
