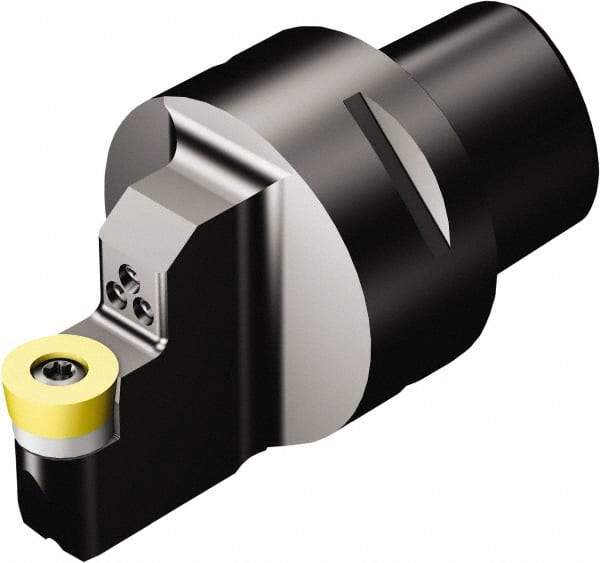

Sandvik Coromant - Neutral Cut, Size C6, RCMT 12 04 M0 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 6mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49492168
Brand: Sandvik Coromant
Model #: 6537690
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 65.00 |
| Insert Style | RCMT 12 04 M0 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 6.00 |
| Center to Cutting Edge (Decimal Inch) | 0.2362 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Center to Cutting Height (mm) | 28.00 |
| Center to Cutting Height (Decimal Inch) | 1.1024 |
| Complete Insert Compatibility | RCMT 12 04 M0 |
| Head Connection Size | C6 |
