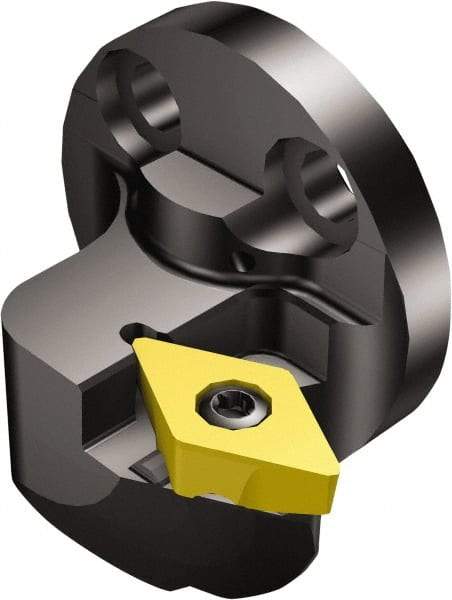

Sandvik Coromant - Right Hand Cut, Size 32, TR-DC1308 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 34mm Head Length, Through Coolant, Series CoroTurn TR
Item #: 49491830
Brand: Sandvik Coromant
Model #: 5755407
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 32 |
| Series Name | CoroTurn TR |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 34.00 |
| Head Length/Projection (Decimal Inch) | 1.3386 |
| Insert Style | TR-DC1308 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 27.00 |
| Maximum Hole Depth (Decimal Inch) | 1.0630 |
| Minimum Hole Diameter (mm) | 45.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.7716 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.25984 |
| Complete Insert Compatibility | TR-DC1308 |
| Head Connection Size | 32 |
