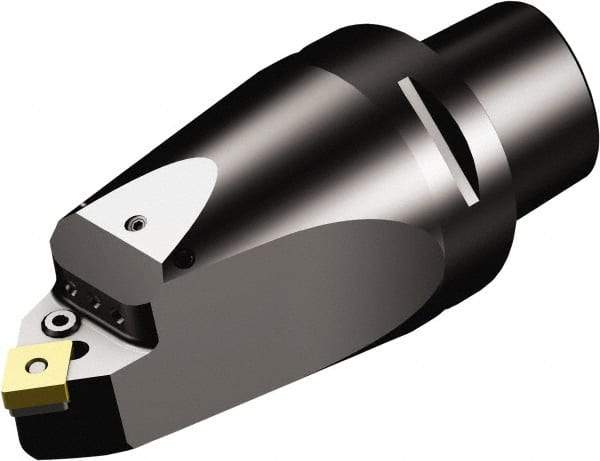

Sandvik Coromant - Neutral Cut, Size C4, CNMG 12 04 08 & CNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 95mm Head Length, Through Coolant, Series T-Max P
Item #: 49491764
Brand: Sandvik Coromant
Model #: 6066661
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 95.00 |
| Insert Style | CNMG 12 04 08; CNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.00 |
| Center to Cutting Edge (Decimal Inch) | 0.0000 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 95.00 |
| Maximum Hole Depth (Decimal Inch) | 3.7402 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CNMG 432; CNMG 12 04 08 |
| Head Connection Size | C4 |
