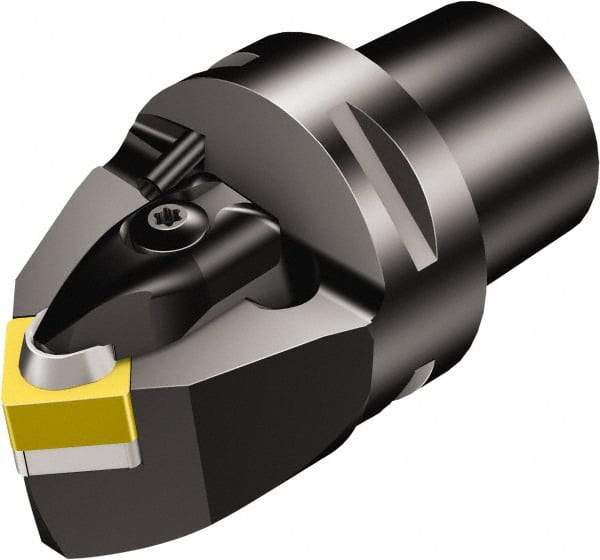

Sandvik Coromant - Neutral Cut, Size C4, SNG 452 & SNGN 12 07 08 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 0.3mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series T-Max
Item #: 49491673
Brand: Sandvik Coromant
Model #: 5727282
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 50.00 |
| Insert Style | SNG 452; SNGN 12 07 08 |
| Center to Cutting Edge (mm) | 0.30 |
| Center to Cutting Edge (Decimal Inch) | 0.0118 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | SNG 452; SNGN 12 07 08 |
| Head Connection Size | C4 |
