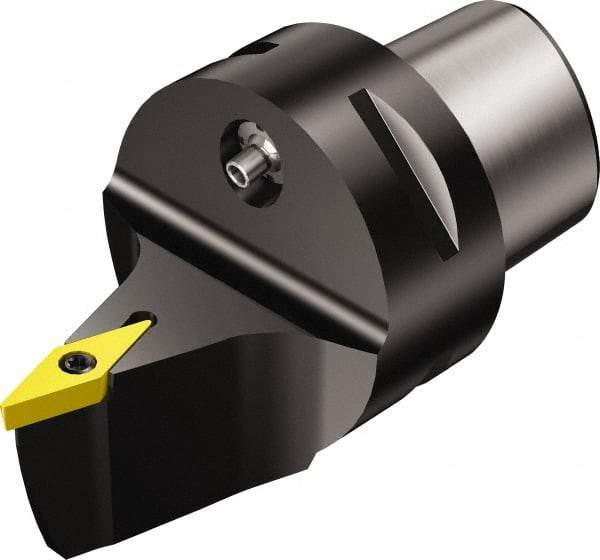

Sandvik Coromant - Neutral Cut, Size C3, VBMT 11 03 04 & VBMT 221 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 0.3mm Ctr to Cutting Edge, 40mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49491640
Brand: Sandvik Coromant
Model #: 5727219
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 40.00 |
| Insert Style | VBMT 11 03 04; VBMT 221 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 0.30 |
| Center to Cutting Edge (Decimal Inch) | 0.0118 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 40.00 |
| Maximum Hole Depth (Decimal Inch) | 1.5748 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.25984 |
| Complete Insert Compatibility | VBMT 221; VBMT 11 03 04 |
| Head Connection Size | C3 |
