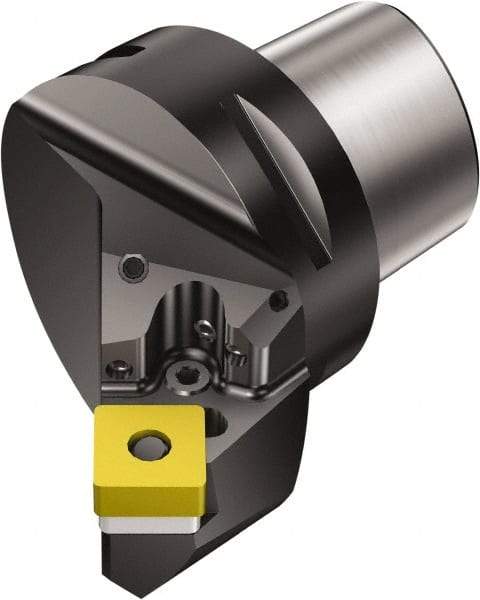

Sandvik Coromant - Left Hand Cut, Size C6, SNMG 19 06 12 & SNMG 643 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 32.52mm Ctr to Cutting Edge, 64.48mm Head Length, Through Coolant, Series T-Max P
Item #: 49491459
Brand: Sandvik Coromant
Model #: 5729884
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 64.48 |
| Head Length/Projection (Decimal Inch) | 2.5386 |
| Insert Style | SNMG 19 06 12; SNMG 643 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 32.52 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 52.00 |
| Maximum Hole Depth (Decimal Inch) | 2.0472 |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | SNMG 643; SNMG 19 06 12 |
| Head Connection Size | C6 |
