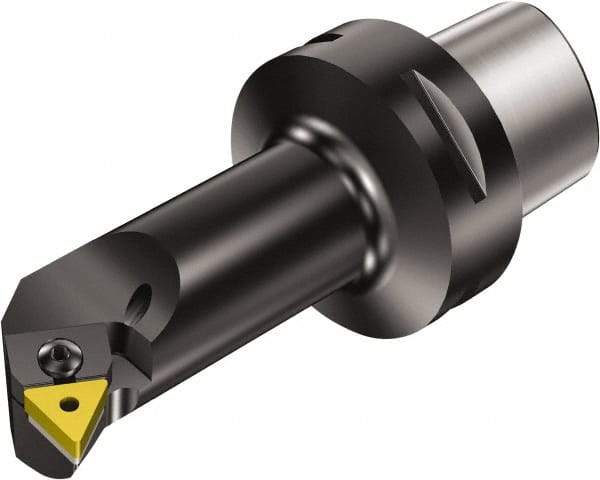

Sandvik Coromant - Right Hand Cut, Size C6, TNMG 16 04 08 & TNMG 332 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 140mm Head Length, Through Coolant, Series T-Max P
Item #: 49491384
Brand: Sandvik Coromant
Model #: 5729680
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 140.00 |
| Insert Style | TNMG 16 04 08; TNMG 332 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Pin & Wedge |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 140.00 |
| Maximum Hole Depth (Decimal Inch) | 5.5118 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Center to Cutting Height (mm) | 115.00 |
| Center to Cutting Height (Decimal Inch) | 4.5276 |
| Complete Insert Compatibility | TNMG 332; TNMG 16 04 08 |
| Head Connection Size | C6 |
