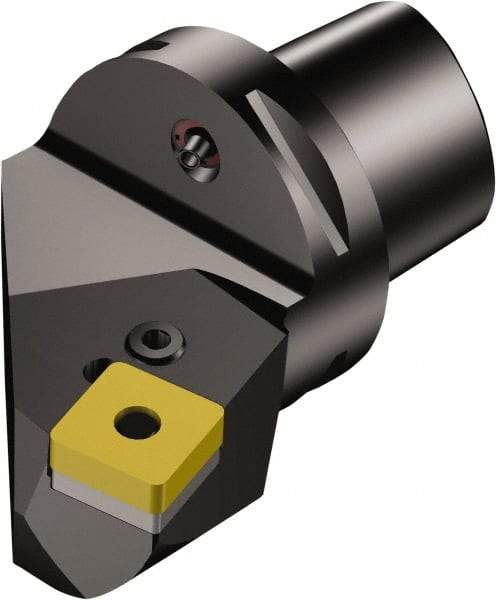

Sandvik Coromant - Right Hand Cut, Size C8, SNMG 25 07 24 & SNMG 856 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 55mm Ctr to Cutting Edge, 86mm Head Length, Through Coolant, Series T-Max P
Item #: 49491210
Brand: Sandvik Coromant
Model #: 5730090
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C8 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 86.00 |
| Head Length/Projection (Decimal Inch) | 3.3858 |
| Insert Style | SNMG 25 07 24; SNMG 856 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 55.00 |
| Center to Cutting Edge (Decimal Inch) | 2.1654 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 80.00 |
| Maximum Hole Depth (Decimal Inch) | 3.1496 |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.14961 |
| Complete Insert Compatibility | SNMG 856; SNMG 25 07 24 |
| Head Connection Size | C8 |
