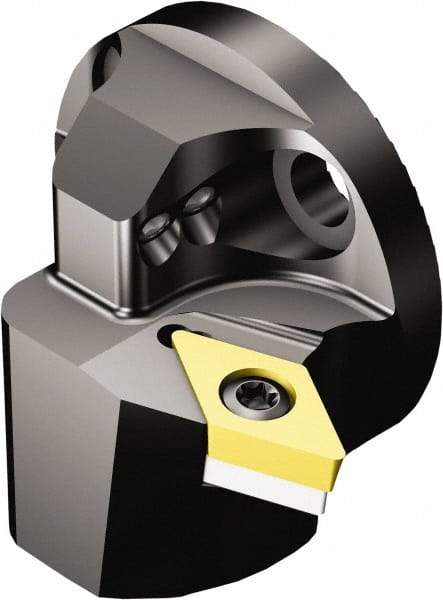

Sandvik Coromant - Left Hand Cut, Size 40, DCMT 11 T3 08 & DCMT 3(2.5)2 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 28mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49491087
Brand: Sandvik Coromant
Model #: 6424628
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 28.00 |
| Head Length/Projection (Decimal Inch) | 1.1024 |
| Insert Style | DCMT 11 T3 08; DCMT 3(2.5)2 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | DCMT 3(2.5)2; DCMT 11 T3 08 |
| Head Connection Size | 40 |
