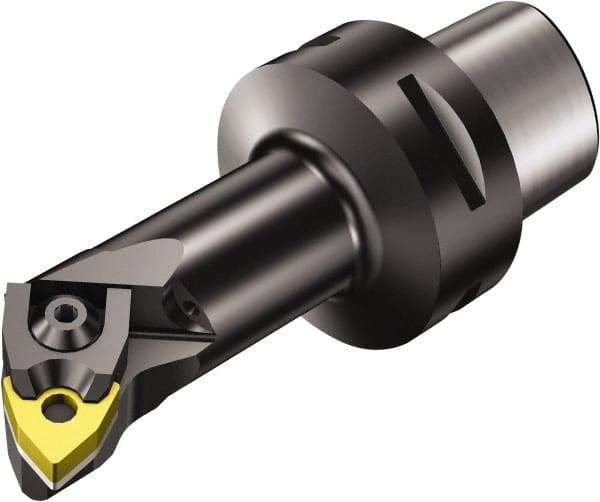

Sandvik Coromant - Right Hand Cut, Size C4, WNMG 08 04 08 & WNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 120mm Head Length, Through Coolant, Series T-Max P
Item #: 49482524
Brand: Sandvik Coromant
Model #: 5728585
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 120.00 |
| Insert Style | WNMG 08 04 08; WNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Pin & Wedge |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 120.00 |
| Maximum Hole Depth (Decimal Inch) | 4.7244 |
| Minimum Hole Diameter (mm) | 50.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Center to Cutting Height (mm) | 100.00 |
| Center to Cutting Height (Decimal Inch) | 3.9370 |
| Complete Insert Compatibility | WNMG 432; WNMG 08 04 08 |
| Head Connection Size | C4 |
