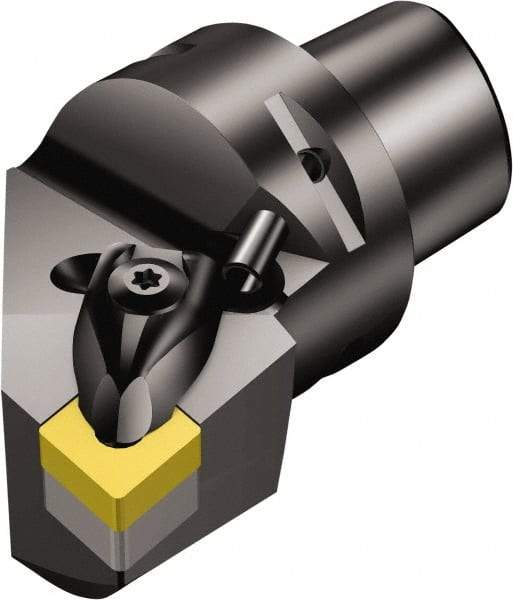

Sandvik Coromant - Left Hand Cut, Size C4, CNMG 09 03 08 & CNMG 322 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 27mm Ctr to Cutting Edge, 50mm Head Length, Through Coolant, Series T-Max P
Item #: 49482516
Brand: Sandvik Coromant
Model #: 5727253
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C4 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 50.00 |
| Insert Style | CNMG 09 03 08; CNMG 322 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 50.00 |
| Maximum Hole Depth (Decimal Inch) | 1.9685 |
| Minimum Hole Diameter (mm) | 60.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.3622 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | CNMG 322; CNMG 09 03 08 |
| Head Connection Size | C4 |
