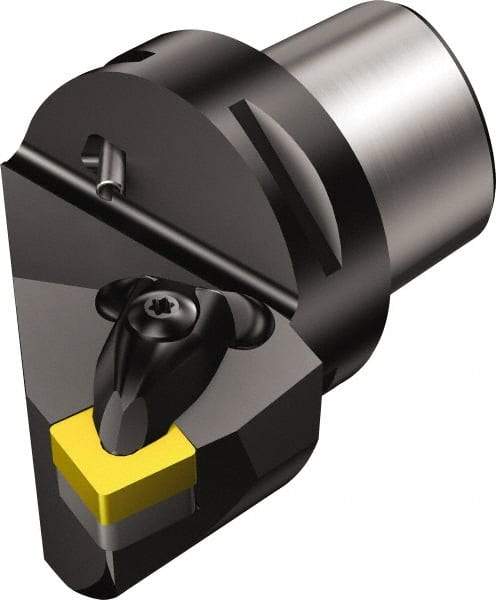

Sandvik Coromant - Left Hand Cut, Size C6, SNMG 15 06 12 & SNMG 543 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series T-Max P
Item #: 49482433
Brand: Sandvik Coromant
Model #: 5729756
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 65.00 |
| Insert Style | SNMG 15 06 12; SNMG 543 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | SNMG 543; SNMG 15 06 12 |
| Head Connection Size | C6 |
