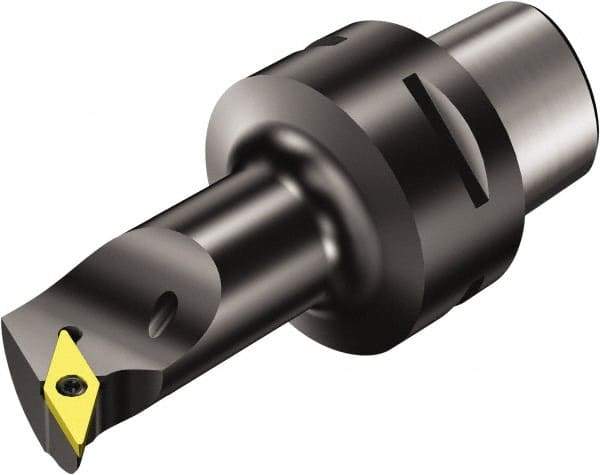

Sandvik Coromant - Right Hand Cut, Size C5, VBMT 16 04 08 & VBMT 332 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 110mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49482391
Brand: Sandvik Coromant
Model #: 5729269
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 110.00 |
| Insert Style | VBMT 16 04 08; VBMT 332 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 110.00 |
| Maximum Hole Depth (Decimal Inch) | 4.3307 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Height (mm) | 88.00 |
| Center to Cutting Height (Decimal Inch) | 3.4646 |
| Complete Insert Compatibility | VBMT 332; VBMT 16 04 08 |
| Head Connection Size | C5 |
