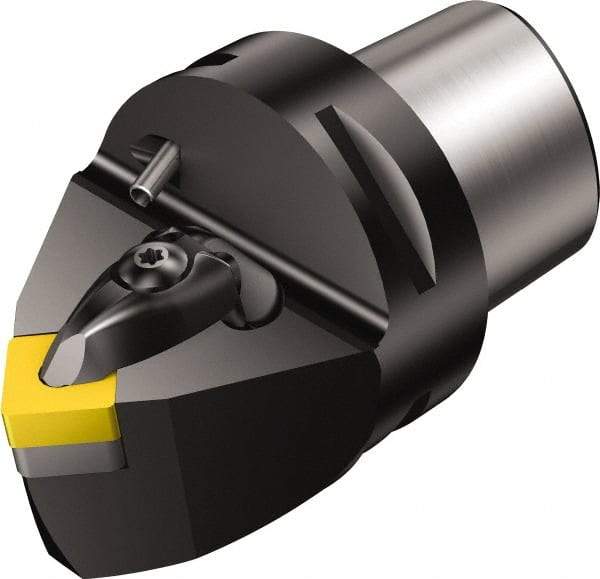

Sandvik Coromant - Neutral Cut, Size C3, SNMG 12 04 08 & SNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 0.3mm Ctr to Cutting Edge, 48mm Head Length, Through Coolant, Series T-Max P
Item #: 49482383
Brand: Sandvik Coromant
Model #: 5727045
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 48.00 |
| Insert Style | SNMG 12 04 08; SNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 0.30 |
| Center to Cutting Edge (Decimal Inch) | 0.0118 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 48.00 |
| Maximum Hole Depth (Decimal Inch) | 1.8898 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.25984 |
| Complete Insert Compatibility | SNMG 432; SNMG 12 04 08 |
| Head Connection Size | C3 |
