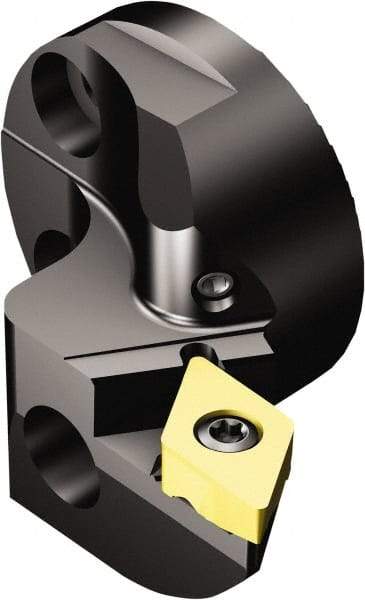

Sandvik Coromant - Left Hand Cut, Size 40, TR-DC1308 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 43mm Ctr to Cutting Edge, 38mm Head Length, Through Coolant, Series CoroTurn TR
Item #: 49482375
Brand: Sandvik Coromant
Model #: 6421229
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 40 |
| Series Name | CoroTurn TR |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 38.00 |
| Insert Style | TR-DC1308 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 43.00 |
| Center to Cutting Edge (Decimal Inch) | 1.6929 |
| Insert Holding Method | Screw |
| Through Coolant | Yes |
| Maximum Hole Depth (mm) | 38.00 |
| Maximum Hole Depth (Decimal Inch) | 1.4961 |
| Minimum Hole Diameter (mm) | 63.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.4803 |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | TR-DC1308 |
| Head Connection Size | 40 |
