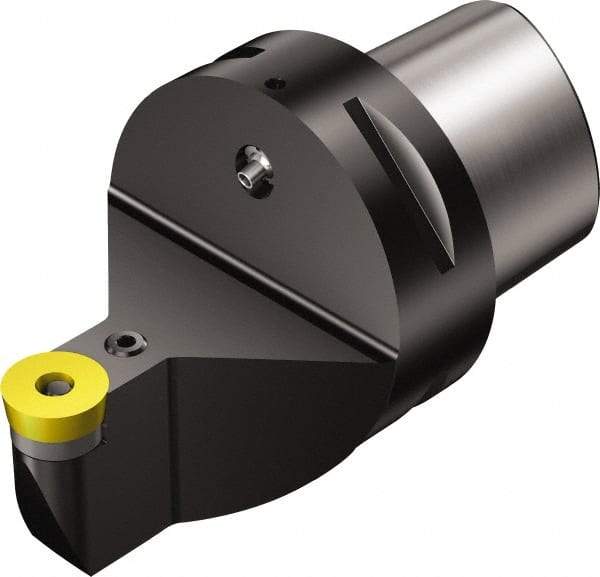

Sandvik Coromant - Neutral Cut, Size C10, RCMX 25 07 00 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 12.5mm Ctr to Cutting Edge, 110mm Head Length, Through Coolant, Series T-Max P
Item #: 49481989
Brand: Sandvik Coromant
Model #: 6067798
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C10 |
| Series Name | T-Max P |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 110.00 |
| Insert Style | RCMX 25 07 00 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 12.50 |
| Center to Cutting Edge (Decimal Inch) | 0.4921 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 110.00 |
| Maximum Hole Depth (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 100.00 |
| Neck Diameter (Decimal Inch) | 3.93701 |
| Center to Cutting Height (mm) | 60.00 |
| Center to Cutting Height (Decimal Inch) | 2.3622 |
| Complete Insert Compatibility | RCMX 25 07 00 |
| Head Connection Size | C10 |
