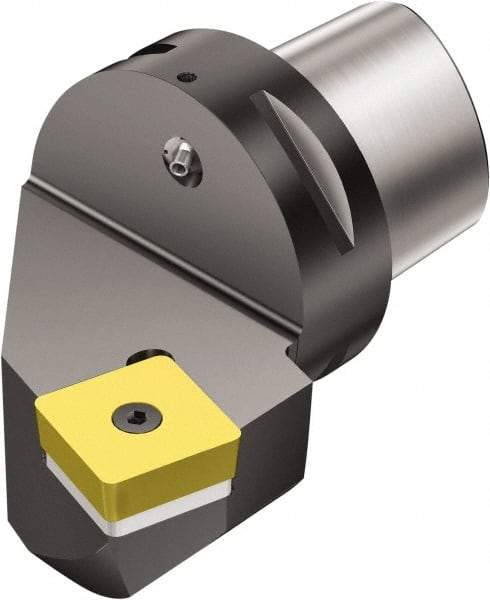

Sandvik Coromant - Left Hand Cut, Size C10, SBMT 38 12 32 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 58mm Ctr to Cutting Edge, 110mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49481823
Brand: Sandvik Coromant
Model #: 6273276
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C10 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Left Hand |
| Head Length/Projection (mm) | 110.00 |
| Insert Style | SBMT 38 12 32 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 58.00 |
| Center to Cutting Edge (Decimal Inch) | 2.2835 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 110.00 |
| Maximum Hole Depth (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 100.00 |
| Neck Diameter (Decimal Inch) | 3.93701 |
| Complete Insert Compatibility | SBMT 38 12 32 |
| Head Connection Size | C10 |
