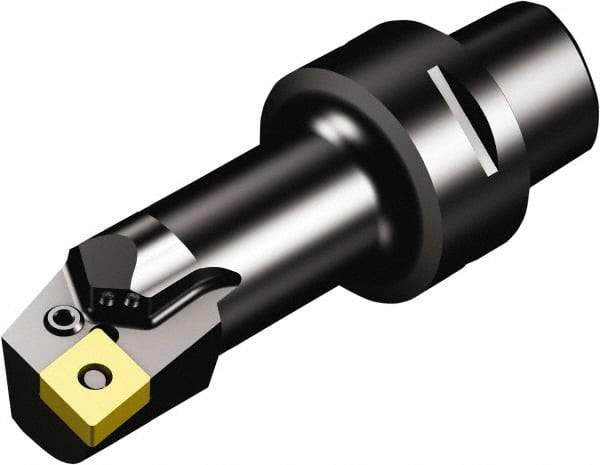

Sandvik Coromant - Right Hand Cut, Size C3, CNMG 12 04 08 & CNMG 432 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 22mm Ctr to Cutting Edge, 96mm Head Length, Through Coolant, Series T-Max P
Item #: 49481617
Brand: Sandvik Coromant
Model #: 6188645
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C3 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 96.00 |
| Insert Style | CNMG 12 04 08; CNMG 432 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Insert Holding Method | Lever |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 96.00 |
| Maximum Hole Depth (Decimal Inch) | 3.7795 |
| Minimum Hole Diameter (mm) | 40.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.5748 |
| Neck Diameter (mm) | 32.00 |
| Neck Diameter (Decimal Inch) | 1.25984 |
| Center to Cutting Height (mm) | 80.00 |
| Center to Cutting Height (Decimal Inch) | 3.1496 |
| Complete Insert Compatibility | CNMG 432; CNMG 12 04 08 |
| Head Connection Size | C3 |
