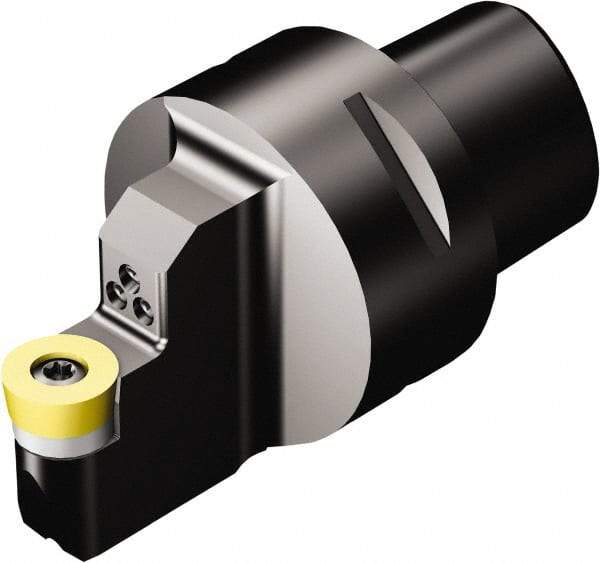

Sandvik Coromant - Neutral Cut, Size C5, RCMT 10 T3 M0 Insert Compatiblity, Internal Modular Turning & Profiling Cutting Unit Head - 5mm Ctr to Cutting Edge, 60mm Head Length, Through Coolant, Series CoroTurn 107
Item #: 49479710
Brand: Sandvik Coromant
Model #: 6537684
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C5 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Neutral |
| Head Length/Projection (mm) | 60.00 |
| Insert Style | RCMT 10 T3 M0 |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 5.00 |
| Center to Cutting Edge (Decimal Inch) | 0.1969 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 60.00 |
| Maximum Hole Depth (Decimal Inch) | 2.3622 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Center to Cutting Height (mm) | 25.00 |
| Center to Cutting Height (Decimal Inch) | 0.9843 |
| Complete Insert Compatibility | RCMT 10 T3 M0 |
| Head Connection Size | C5 |
