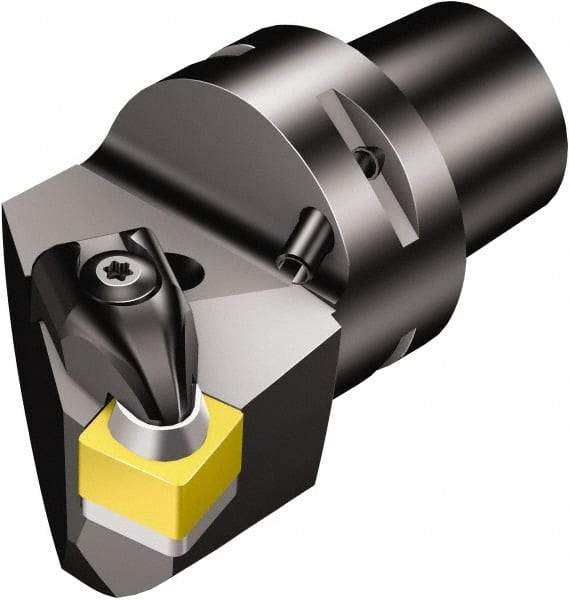

Sandvik Coromant - Right Hand Cut, Size C6, SNG 452 & SNGN 12 07 08 Insert Compatiblity, Modular Turning & Profiling Cutting Unit Head - 35mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series T-Max
Item #: 49479447
Brand: Sandvik Coromant
Model #: 5730311
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.00 |
| Insert Style | SNG 452; SNGN 12 07 08 |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | SNG 452; SNGN 12 07 08 |
| Head Connection Size | C6 |
