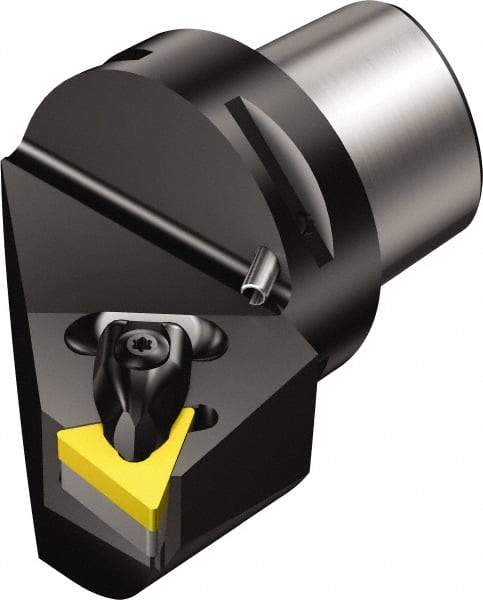

Sandvik Coromant - Right Hand Cut, Size C6, TNMG 16 04 08 & TNMG 332 Insert Compatiblity, External Modular Turning & Profiling Cutting Unit Head - 45mm Ctr to Cutting Edge, 65mm Head Length, Through Coolant, Series T-Max P
Item #: 49479256
Brand: Sandvik Coromant
Model #: 5728829
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | C6 |
| Series Name | T-Max P |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.00 |
| Insert Style | TNMG 16 04 08; TNMG 332 |
| Internal or External | External |
| Center to Cutting Edge (mm) | 45.00 |
| Center to Cutting Edge (Decimal Inch) | 1.7716 |
| Insert Holding Method | Wedge Clamp |
| Through Coolant | Through Coolant |
| Maximum Hole Depth (mm) | 65.00 |
| Maximum Hole Depth (Decimal Inch) | 2.5591 |
| Minimum Hole Diameter (mm) | 110.00 |
| Minimum Hole Diameter (Decimal Inch) | 4.3307 |
| Neck Diameter (mm) | 63.00 |
| Neck Diameter (Decimal Inch) | 2.48032 |
| Complete Insert Compatibility | TNMG 332; TNMG 16 04 08 |
| Head Connection Size | C6 |
