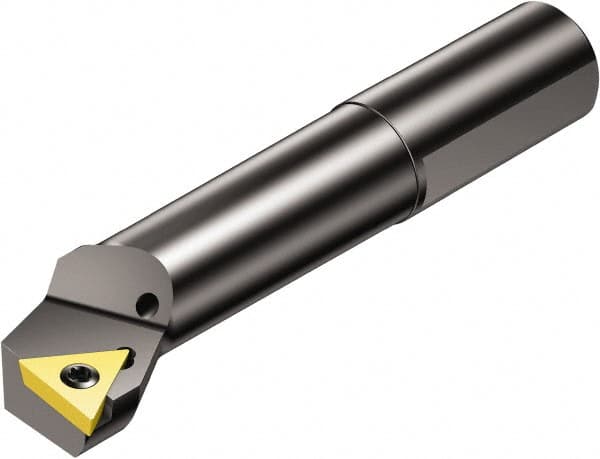

Sandvik Coromant - 23mm Min Bore Diam, 144mm OAL, 20mm Shank Diam, R429U-Axx..TC Indexable Boring Bar - TCMT Insert, Screw-On Holding Method
Item #: 49478001
Brand: Sandvik Coromant
Model #: 5746648
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | R429U-Axx..TC |
| Series | Fine boring head |
| Minimum Bore Diameter (mm) | 23.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.9055 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 144.00 |
| Overall Length (Decimal Inch) | 5.6693 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Compatibility | TCMT |
| Through Coolant | Yes |
| Insert Holding Method | Screw-On |
| Rake | Neutral |
| Lead Angle | -2 |
| Back of Bar to Cutting Edge (mm) | 144.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 5.6693 |
| Center to Cutting Edge (mm) | 11.50 |
| Center to Cutting Edge (Decimal Inch) | 0.4528 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCMT 09 02 02; TCMT 1.8(1.5)0 |
| Toolholder Material | Steel |
