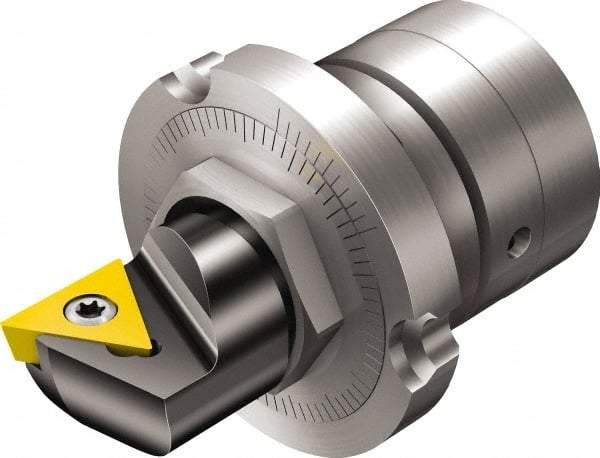

Sandvik Coromant - Series Fine Boring Unit, Right Hand Cut, 60mm Min Bore Diam, Boring Cartridge - 33.3mm Back of Bar to Cutting Edge, TCMT Insert, 64mm OAL
Item #: 49476021
Brand: Sandvik Coromant
Model #: 5741549
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Fine Boring Unit |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 2.3622 |
| Minimum Bore Diameter (mm) | 60.00 |
| Insert Style | TCMT |
| Cartridge Size | 4 |
| Angular or Straight Mount Bars | Angular |
| Overall Length (mm) | 64.00 |
| Overall Length (Decimal Inch) | 2.5197 |
| Back of Bar to Cutting Edge (mm) | 33.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.3110 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.31102 |
| Back of Bar to Cutting Edge (mm) | 33.3 |
| Complete Insert Compatibility | TCMT 16 T3 00 RE=0 |
