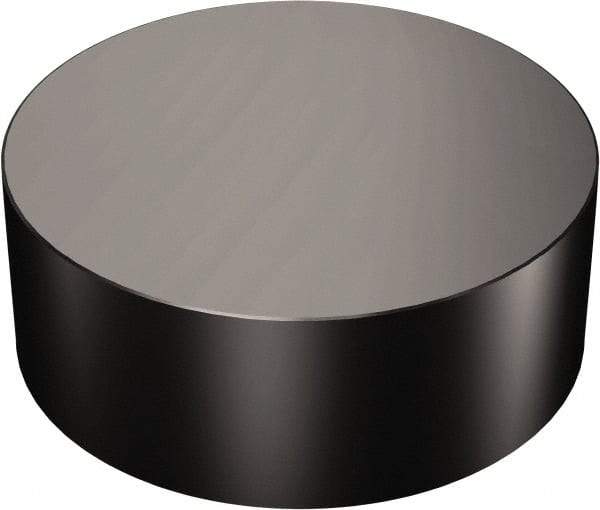

Sandvik Coromant - RNGN45 Grade 650 Ceramic Turning Insert - TiN Finish, Round, 1/2" Inscr Circle, 5/16" Thick
Item #: 49456205
Brand: Sandvik Coromant
Model #: 5741292
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RNGN |
| Insert Size | 45 |
| Material | Ceramic |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3126 |
| Thickness (mm) | 7.94 |
| Manufacturer's Grade | 650 |
| Coating | TiN |
| ISO Number | RNGN120700K15015650 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5741292 |
| Primary Workpiece Material | K; S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Double Negative Land |
| Shape | Round |
