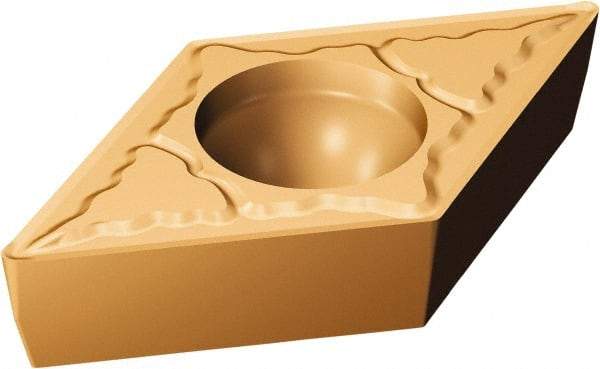

Sandvik Coromant - DCMT32.53 MM Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 55° Diamond, 3/8" Inscr Circle, 5/32" Thick, 3/64" Corner Radius
Item #: 49454192
Brand: Sandvik Coromant
Model #: 5730728
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 32.53 |
| Material | Carbide |
| Length (mm) | 11.63 |
| Length (Decimal Inch) | 0.4579 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | MM |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| ISO Number | DCMT11T312MM1125 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5730728 |
| Primary Workpiece Material | M; S |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 10.43 |
| Maximum Depth of Cut (Decimal Inch) | 0.4106 |
| Insert Holding Method | Screw |
| Shape | Diamond |
