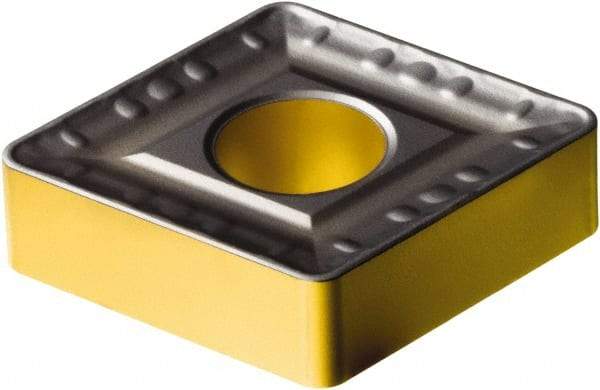

Sandvik Coromant - CNMM866 HR Grade 4215 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Diamond, 1" Inscr Circle, 3/8" Thick, 3/32" Corner Radius
Item #: 49454036
Brand: Sandvik Coromant
Model #: 5725827
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMM |
| Insert Size | 866 |
| Material | Carbide |
| Length (mm) | 25.79 |
| Length (Decimal Inch) | 1.0154 |
| Inscribed Circle (mm) | 25.40 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Inscribed Circle (Inch) | 1 |
| Thickness (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.3748 |
| Thickness (mm) | 9.52 |
| Corner Radius (Inch) | 3/32 |
| Corner Radius (mm) | 2.40 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Manufacturer's Grade | 4215 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HR |
| Hole Diameter (mm) | 9.12 |
| Hole Diameter (Decimal Inch) | 0.3591 |
| ISO Number | CNMM250924HR4215 |
| Relief Angle | 0 |
| Coating Process | MTCVD |
| Manufacturers Catalog Number | 5725827 |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 23.39 |
| Maximum Depth of Cut (Decimal Inch) | 0.9209 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
