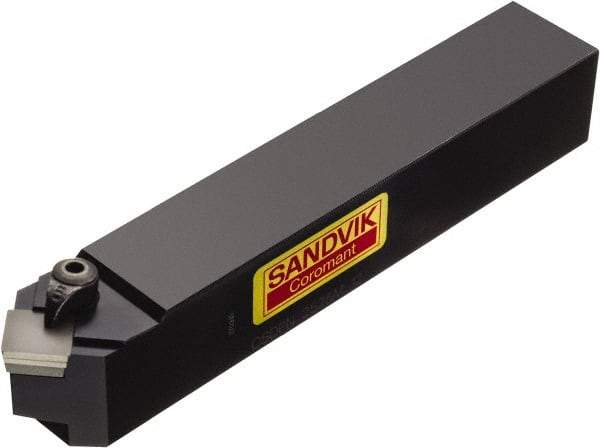

Sandvik Coromant - CSDP, Neutral Cut, 45° Lead Angle, 20mm Shank Height x 20mm Shank Width, Positive Rake Indexable Turning Toolholder - 125mm OAL, SPUN 12 03 08 Insert Compatibility, Series T-Max S
Item #: 49449622
Brand: Sandvik Coromant
Model #: 5726005
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CSDP |
| Rake | Positive |
| Rake Angle | 6 |
| Series | T-Max S |
| Lead Angle | 45 |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | SPUN 12 03 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 10.30 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.4055 |
| Head Length (mm) | 29.00 |
| Head Length (Decimal Inch) | 1.1417 |
| Toolholder Material | Steel |
