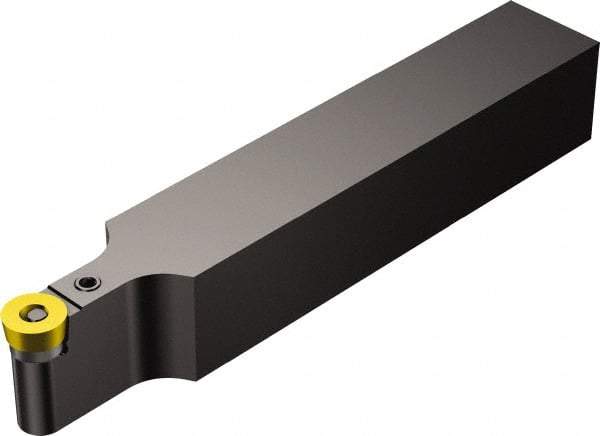

Sandvik Coromant - PRDC, Neutral Cut, 20mm Shank Height x 20mm Shank Width, Neutral Rake Indexable Turning Toolholder - 125mm OAL, RCMX 10 03 00 Insert Compatibility, Series T-Max P
Item #: 49449598
Brand: Sandvik Coromant
Model #: 5738927
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | T-Max P |
| Shank Width (mm) | 20.00 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Insert Compatibility | RCMX 10 03 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Back of Bar to Cutting Edge (mm) | 15.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.5906 |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1811 |
| Toolholder Material | Steel |
