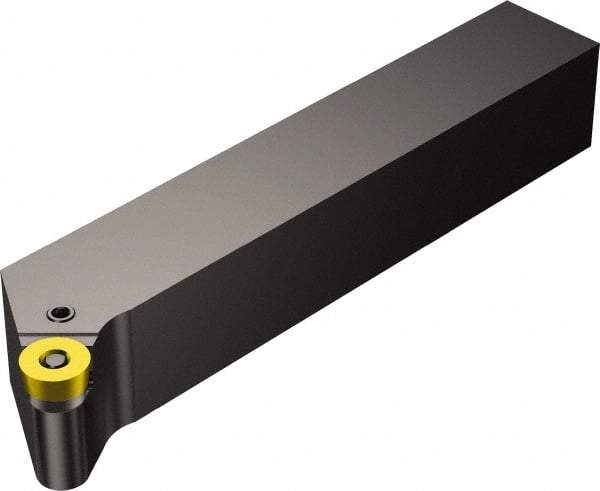

Sandvik Coromant - PRGC, Left Hand Cut, 40mm Shank Height x 40mm Shank Width, Neutral Rake Indexable Turning Toolholder - 250mm OAL, RCMX 25 07 00 Insert Compatibility, Series T-Max P
Item #: 49448640
Brand: Sandvik Coromant
Model #: 5738954
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PRGC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | T-Max P |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | RCMX 25 07 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Back of Bar to Cutting Edge (mm) | 50.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.9685 |
| Head Length (mm) | 50.50 |
| Head Length (Decimal Inch) | 1.9882 |
| Toolholder Material | Steel |
