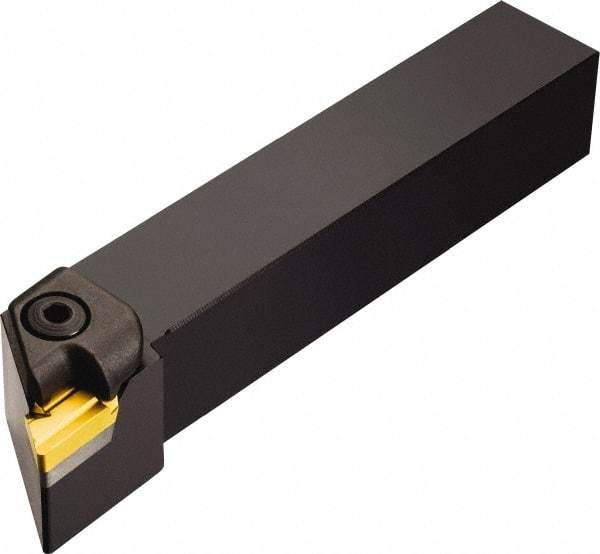

Sandvik Coromant - CKJN, Left Hand Cut, -3° Lead Angle, 1" Shank Height x 1" Shank Width, Negative Rake Indexable Turning Toolholder - 6" OAL, KNUX 16 04 05L Insert Compatibility, Series T-Max
Item #: 49447964
Brand: Sandvik Coromant
Model #: 5725334
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | CKJN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max |
| Lead Angle | -3 |
| Shank Width (Inch) | 1 |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | KNUX 16 04 05L |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Inch) | 1-1/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
