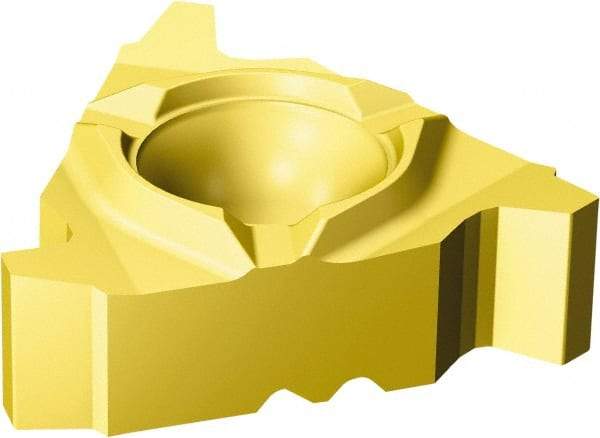

Sandvik Coromant - 26627 F Grade 1020, Internal ISO Trapezoidal 30° Threading Insert - 80mm Int Pitch, Right Hand Insert, Carbide
Item #: 49445083
Brand: Sandvik Coromant
Model #: 5758084
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 27 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | ISO Trapezoidal 30 Degrees |
| Manufacturer's Grade | 1020 |
| Internal Pitch/TPI | 8.00 mm |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RL27TR01F800E1020 |
| Thickness (mm) | 7.00 |
| Thickness (Decimal Inch) | 0.2756 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | F |
| Manufacturers Catalog Number | 5758084 |
