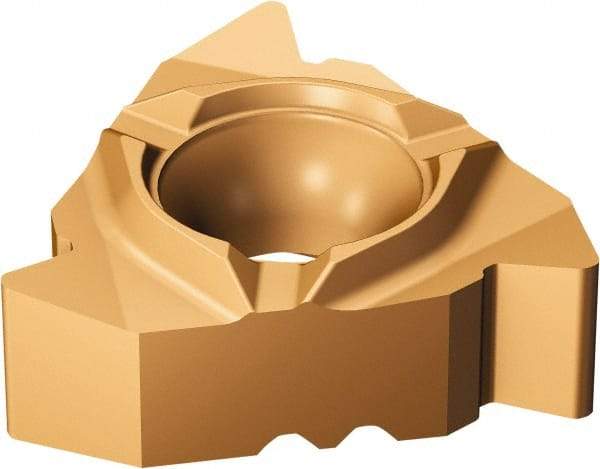

Sandvik Coromant - 26616 A Grade 1125, External NPT Threading Insert - 14 TPI Ext Pitch, Left Hand Insert, Carbide
Item #: 49445075
Brand: Sandvik Coromant
Model #: 5757725
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Thread Standard | NPT |
| Manufacturer's Grade | 1125 |
| External Pitch/TPI | 14 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266LG16NT01A140M1125 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | A |
| Manufacturers Catalog Number | 5757725 |
