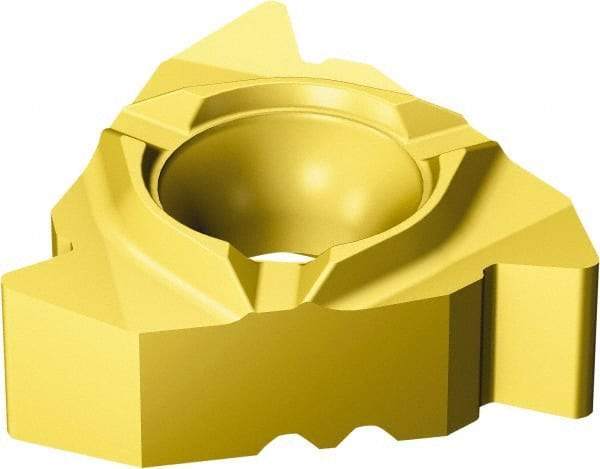

Sandvik Coromant - 26616 F Grade 1135, External Partial Profile 55° Threading Insert - 8 to 14 TPI Ext Pitch, Right Hand Insert, Carbide
Item #: 49444912
Brand: Sandvik Coromant
Model #: 5857590
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 266 |
| Insert Size | 16 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 55 Degrees |
| Manufacturer's Grade | 1135 |
| External Pitch/TPI | 8-14 TPI |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | 266RG16VW01F002E1135 |
| Corner Radius (mm) | 0.23 |
| Corner Radius (Decimal Inch) | 0.0091 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Series | CoroThread 266 |
| Included Angle of Threading Tip | 60 |
| Chipbreaker | F |
| Manufacturers Catalog Number | 5857590 |
