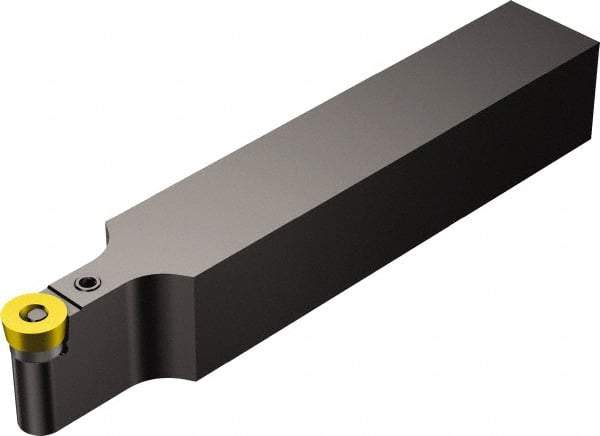

Sandvik Coromant - PRDC, Neutral Cut, 32mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 170mm OAL, RCMX 12 04 00 Insert Compatibility, Series T-Max P
Item #: 49444110
Brand: Sandvik Coromant
Model #: 5738969
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PRDC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | T-Max P |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6929 |
| Insert Compatibility | RCMX 12 04 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Back of Bar to Cutting Edge (mm) | 18.50 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7283 |
| Head Length (mm) | 33.00 |
| Head Length (Decimal Inch) | 1.2992 |
| Toolholder Material | Steel |
