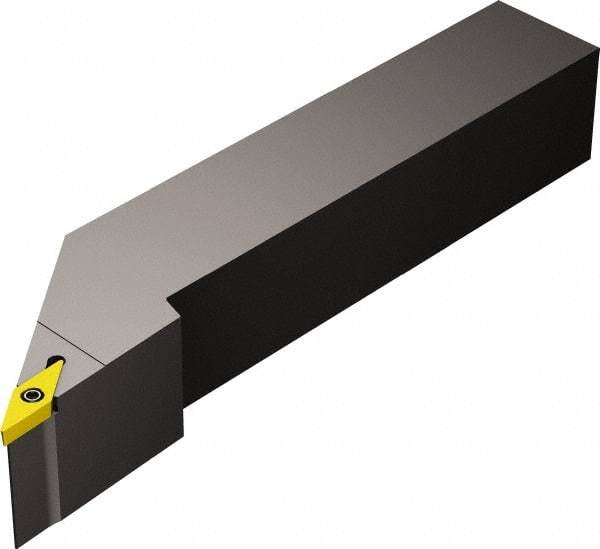

Sandvik Coromant - SVJB, Right Hand Cut, -3° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, VBMT 16 04 08 Insert Compatibility, Series CoroTurn 107
Item #: 49442106
Brand: Sandvik Coromant
Model #: 5752626
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | SVJB |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | -3 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | VBMT 16 04 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 31.50 |
| Head Length (Decimal Inch) | 1.2402 |
| Toolholder Material | Steel |
