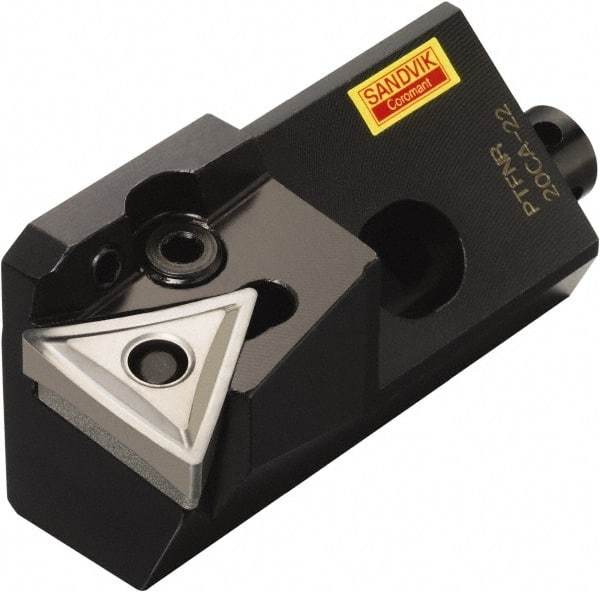

Sandvik Coromant - Series T-Max P, Left Hand, PTFNR/L..CA Toolholder Compatibility, TNMG 22 04 08, TNMG 432 Insert Compatibility, Indexable Turning Cartridge - Lever Holding Method, 70mm OAL x 30mm OAW x 20mm OAH
Item #: 49442080
Brand: Sandvik Coromant
Model #: 5738887
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | T-Max P |
| Cutting Direction | Left Hand |
| Toolholder Style Compatibility | PTFNR/L..CA |
| Insert Style Compatibility | TNMG 22 04 08; TNMG 432 |
| Insert Holding Method | Lever |
| Overall Length (mm) | 70.00 |
| Overall Length (Decimal Inch) | 2.7559 |
| Overall Width (mm) | 30.00 |
| Overall Width (Decimal Inch) | 1.1811 |
| Overall Height (mm) | 20.00 |
| Overall Height (Decimal Inch) | 0.7874 |
| Complete Insert Compatibility | TNMG 22 04 08; TNMG 432 |
