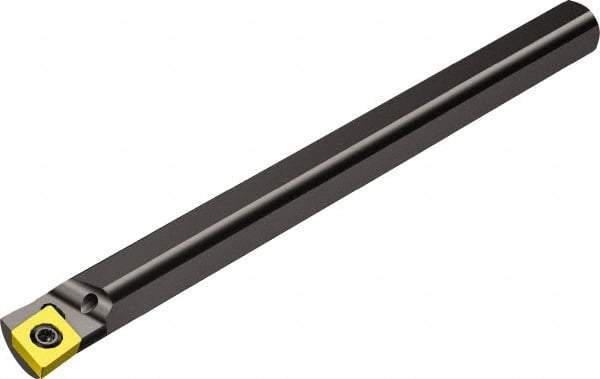

Sandvik Coromant - 20mm Min Bore Diam, 200mm OAL, 16mm Shank Diam, A..SCLCR/L Indexable Boring Bar - Screw-On Holding Method
Item #: 49441066
Brand: Sandvik Coromant
Model #: 5722021
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | A..SCLCR/L |
| Series | CoroTurn 107 |
| Minimum Bore Diameter (mm) | 20.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.7874 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Screw-On |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCMT 06 02 04 |
| Toolholder Material | Steel |
