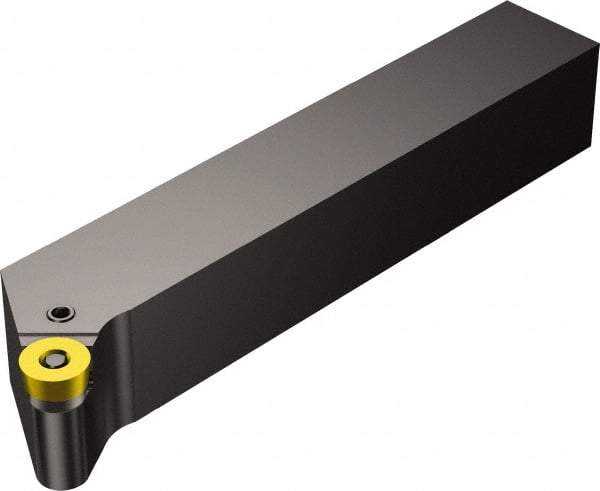

Sandvik Coromant - PRGC, Right Hand Cut, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, RCMX 12 04 00 Insert Compatibility, Series T-Max P
Item #: 49439524
Brand: Sandvik Coromant
Model #: 5738278
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | PRGC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | T-Max P |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | RCMX 12 04 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Back of Bar to Cutting Edge (mm) | 32.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2598 |
| Head Length (mm) | 27.20 |
| Head Length (Decimal Inch) | 1.0709 |
| Toolholder Material | Steel |
