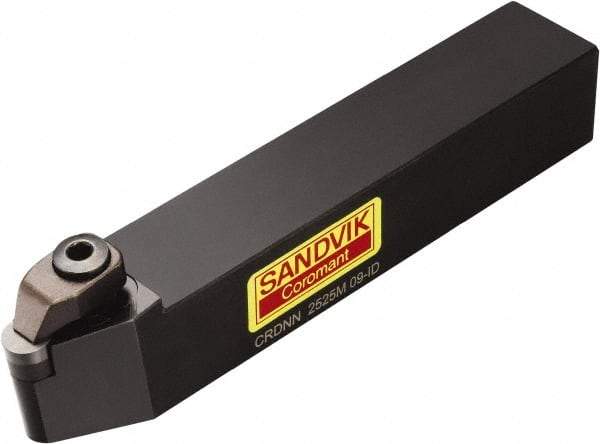

Sandvik Coromant - CRDN, Neutral Cut, 25mm Shank Height x 25mm Shank Width, Negative Rake Indexable Turning Toolholder - 150mm OAL, RNGN 12 07 00 Insert Compatibility, Series T-Max
Item #: 49439169
Brand: Sandvik Coromant
Model #: 5726138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | CRDN |
| Rake | Negative |
| Rake Angle | -8 |
| Series | T-Max |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | RNGN 12 07 00 |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 18.80 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7402 |
| Head Length (mm) | 32.00 |
| Head Length (Decimal Inch) | 1.2598 |
| Toolholder Material | Steel |
