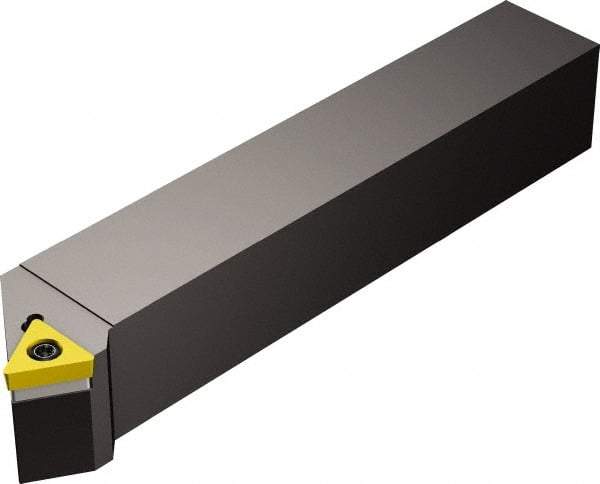

Sandvik Coromant - STTC, Right Hand Cut, 30° Lead Angle, 25mm Shank Height x 25mm Shank Width, Neutral Rake Indexable Turning Toolholder - 150mm OAL, TCMT 16 T3 08 Insert Compatibility, Series CoroTurn 107
Item #: 49437494
Brand: Sandvik Coromant
Model #: 5751619
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | STTC |
| Rake | Neutral |
| Rake Angle | 0 |
| Series | CoroTurn 107 |
| Lead Angle | 30 |
| Shank Width (mm) | 25.00 |
| Shank Width (Decimal Inch) | 0.9843 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Insert Compatibility | TCMT 16 T3 08 |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 22.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length (mm) | 21.20 |
| Head Length (Decimal Inch) | 0.8346 |
| Toolholder Material | Steel |
