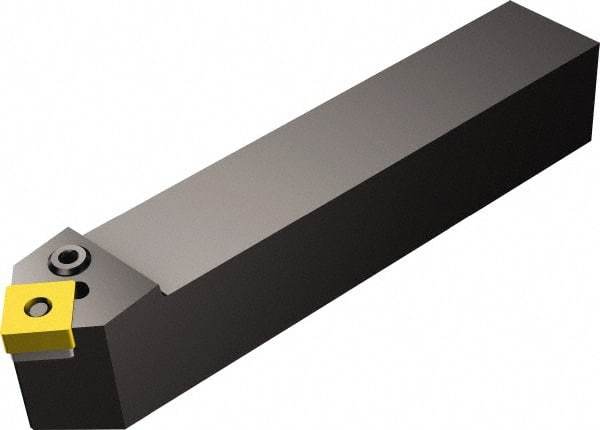

Sandvik Coromant - PSDN, Neutral Cut, 45° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 250mm OAL, SNMG 25 07 24 Insert Compatibility, Series T-Max P
Item #: 49437247
Brand: Sandvik Coromant
Model #: 5740020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | PSDN |
| Rake | Negative |
| Rake Angle | -6 |
| Series | T-Max P |
| Lead Angle | 45 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Insert Compatibility | SNMG 25 07 24 |
| Multi-Use Tool | No |
| Insert Holding Method | Lever |
| Back of Bar to Cutting Edge (mm) | 21.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8268 |
| Head Length (mm) | 48.80 |
| Head Length (Decimal Inch) | 1.9213 |
| Toolholder Material | Steel |
