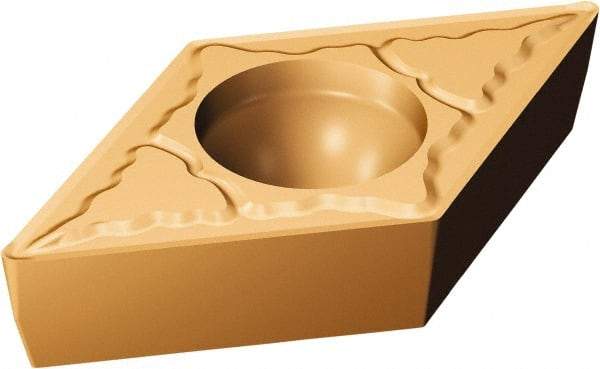

Sandvik Coromant - DPMT21.52 MM Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 55° Diamond, 1/4" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 49436363
Brand: Sandvik Coromant
Model #: 5732445
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Product Specifications | |
---|---|
Insert Style | DPMT |
Insert Size | 21.52 |
Material | Carbide |
Length (mm) | 7.75 |
Length (Decimal Inch) | 0.3051 |
Inscribed Circle (mm) | 6.35 |
Inscribed Circle (Decimal Inch) | 0.2500 |
Inscribed Circle (Inch) | 1/4 |
Thickness (Inch) | 3/32 |
Thickness (Decimal Inch) | 0.0937 |
Thickness (mm) | 2.38 |
Corner Radius (Inch) | 1/32 |
Corner Radius (mm) | 0.80 |
Corner Radius (Decimal Inch) | 0.0315 |
Manufacturer's Grade | 1125 |
Coating | TiAlN/AlCr2O3 |
Chip Breaker | MM |
Hole Diameter (mm) | 2.80 |
Hole Diameter (Decimal Inch) | 0.1102 |
ISO Number | DPMT070208MM1125 |
Relief Angle | 11 |
Coating Process | PVD |
Manufacturers Catalog Number | 5732445 |
Primary Workpiece Material | M |
Included Angle | 55 |
Cutting Direction | Neutral |
Insert Hand | Neutral |
Series | CoroTurn 111 |
Maximum Depth of Cut (mm) | 6.95 |
Maximum Depth of Cut (Decimal Inch) | 0.2736 |
Insert Holding Method | Screw |
Shape | Diamond |
