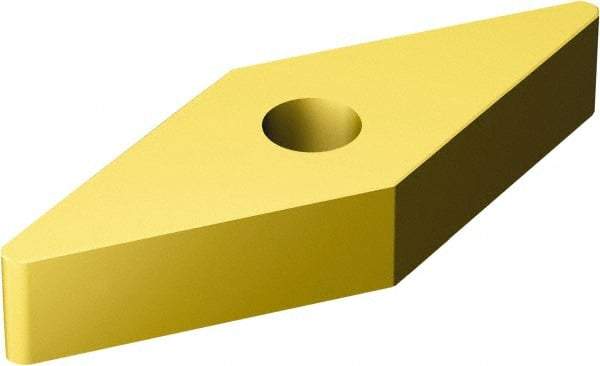

Sandvik Coromant - VNGA332 Grade 6050 Ceramic Turning Insert - TiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49433600
Brand: Sandvik Coromant
Model #: 5756013
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | VNGA |
| Insert Size | 332 |
| Material | Ceramic |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 6050 |
| Coating | TiN |
| Hole Diameter (mm) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Number | VNGA160408T015256050 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5756013 |
| Primary Workpiece Material | H |
| Included Angle | 35 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 15.81 |
| Maximum Depth of Cut (Decimal Inch) | 0.6224 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Negative Land |
| Shape | Diamond |
