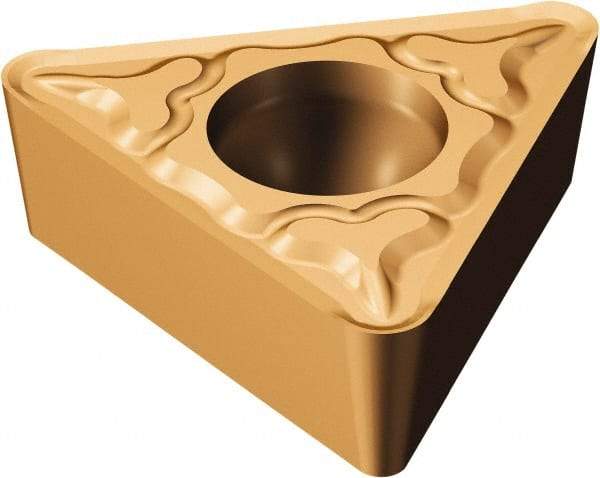

Sandvik Coromant - TCMT1.81.52 MM Grade 1125 Carbide Turning Insert - TiAlN/AlCr2O3 Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 49431729
Brand: Sandvik Coromant
Model #: 5752765
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMT |
| Insert Size | 1.81.52 |
| Material | Carbide |
| Length (mm) | 9.37 |
| Length (Decimal Inch) | 0.3689 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0937 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 1125 |
| Coating | TiAlN/AlCr2O3 |
| Chip Breaker | MM |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| ISO Number | TCMT090208MM1125 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5752765 |
| Primary Workpiece Material | M; S |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 8.57 |
| Maximum Depth of Cut (Decimal Inch) | 0.3374 |
| Insert Holding Method | Screw |
| Shape | Triangle |
