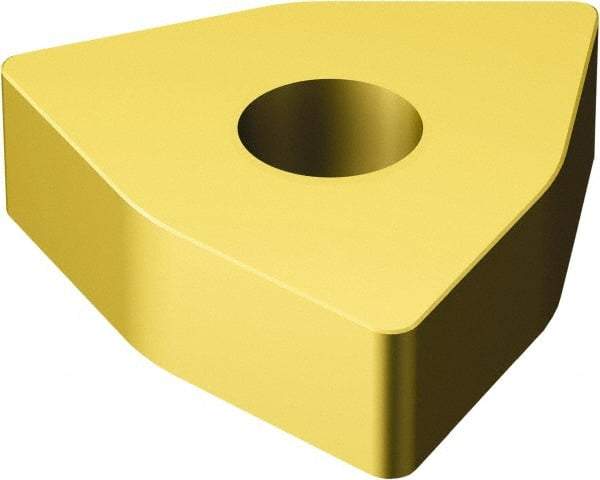

Sandvik Coromant - WNGA432 Grade 6050 Ceramic Turning Insert - TiN Finish, 80° Trigon, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Item #: 49430556
Brand: Sandvik Coromant
Model #: 5756261
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | WNGA |
| Insert Size | 432 |
| Material | Ceramic |
| Length (mm) | 8.69 |
| Length (Decimal Inch) | 0.3421 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1874 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | 6050 |
| Coating | TiN |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2032 |
| ISO Number | WNGA080408T015256050 |
| Relief Angle | 0 |
| Coating Process | PVD |
| Manufacturers Catalog Number | 5756261 |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max P |
| Maximum Depth of Cut (mm) | 7.89 |
| Maximum Depth of Cut (Decimal Inch) | 0.3106 |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Negative Land |
| Shape | Trigon |
